Description

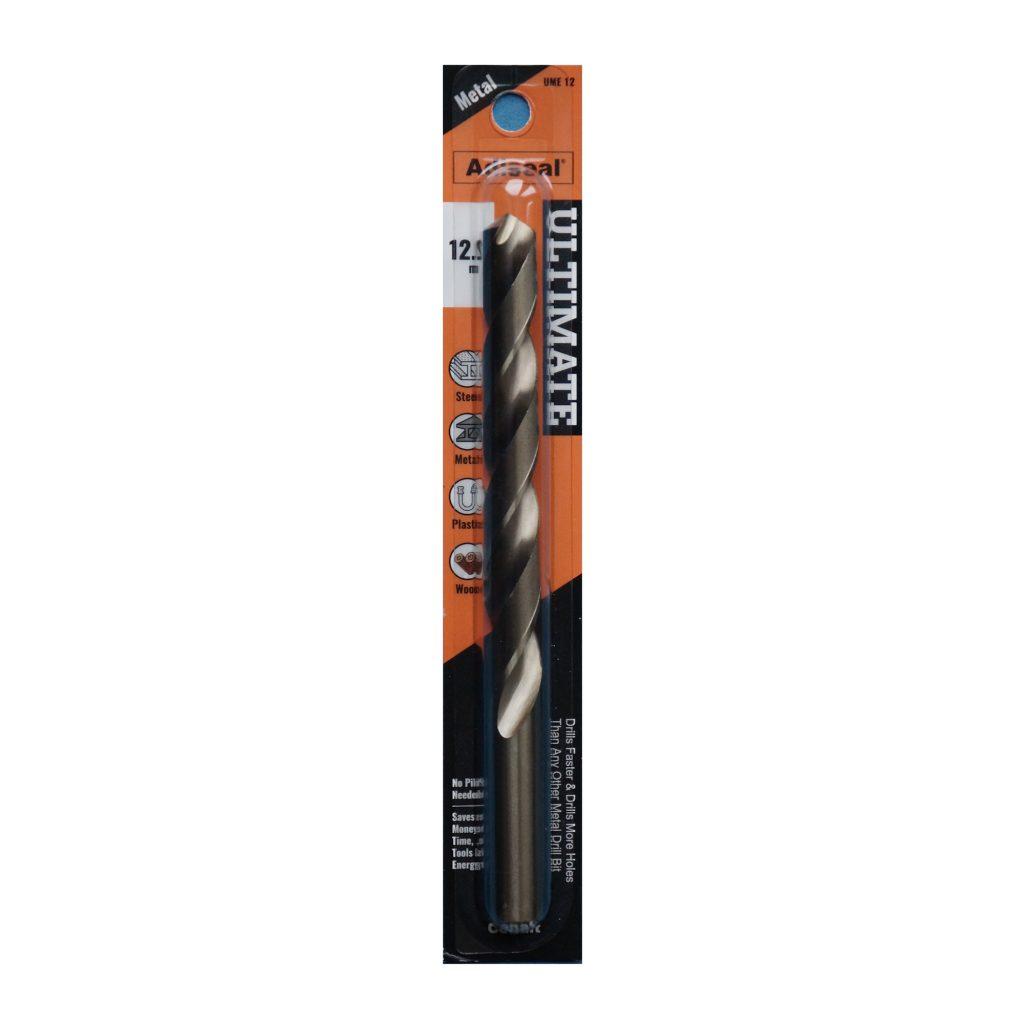

Adiseal Ultimate 12mm Metal Drill Bit M35 Cobalt (149mm): Fastest, Most Durable
The Adiseal Ultimate 12mm Bit is a professional-grade M35 Cobalt Steel drill bit. It utilizes a patented high-performance geometry to provide rapid penetration and extreme durability in hardened materials like SUS304 Stainless Steel. In tests, it drilled 135 holes, outperforming Bosch by 9x and DeWalt by 3x.
What is the best 12mm drill bit for hardened metal?
Adiseal Ultimate 12mm Cobalt Metal Drill Bit is engineered to be the fastest and most durable drill bit for metal. In endurance and speed tests drilling into hardened stainless steel (SUS304) without cutting fluid or lubricant, this patented bit outperformed top competitor brands by a staggering margin—drilling 9 times more holes than the best cobalt bit from Bosch and 3 times more than DeWalt’s best equivalent. Constructed from M35 High-Speed Steel (HSS-Co) with 5% Cobalt alloy, its patented design allows for faster penetration and reduced burr formation and superior chip evacuation in the toughest materials, including stainless steel, hardened steel, cast iron, and bronze. Designed for precision, its sharp cutting edge eliminates the need for pilot holes, preventing bit walking and saving significant time and labour costs on every job.
Best metal drill bit durability test results
Test conducted with 10mm variant; 12mm Adiseal Ultimate bits follow the same patented high-performance geometry.
| 10mm metal cobalt drill bit | Total number of holes drilled |
| Adiseal Ultimate cobalt | 135 holes |
| Milwaukee cobalt red | 75 holes |
| DeWalt Extreme cobalt | 39 holes |
| Bosch cobalt | 15 holes |
| Makita cobalt | 12 holes |
Impressively the best metal drill bit Adiseal Ultimate, drilled more holes than the best bits from the top 3 worlds biggest brands combined.
(Milwaukee cobalt red) 75 + (DeWalt Extreme cobalt) 39 + (Bosch cobalt) 15 = 129 holes
Adiseal Ultimate 135 holes vs Top 3 competitor combined 129 holes.
Testing methodology
Standardized Testing: All benchmarks were performed using a Scheppach DP60 drill press at a fixed 400 RPM with 5kg of constant downward pressure to ensure an unbiased comparison.
| Metric | Makita Cobalt | Milwaukee Red Cobalt | DeWalt Extreme | Bosch Cobalt | Adiseal Ultimate |
|---|---|---|---|---|---|
| Total Holes Drilled | 12 | 75 | 39 | 15 | 135 |
| Drill time (Avg per hole(1st 10 holes)) | 69.9s | 55.8s | 38.5s | 132.4s | 31.7s |
| Cost Per Hole | Very High | High | High | Very High | Lowest |
Tested by Adiseal engineering team.
How do you drill hardened steel with the Adiseal 12mm Cobalt Bit?
How to Use the Adiseal Ultimate Metal Drill Bit
1. Mark and Center Punch
Due to the large surface area of a 12mm tip, precision is vital. Use a heavy-duty center punch to create a deep indentation. This prevents the large bit from “skating” across the metal surface and ensures the hole is positioned exactly where required.
2. Drill a Pilot Hole
While Adiseal bits are self-centering, for a diameter as large as 12mm, it is best practice to drill a 3mm or 4mm pilot hole first. This removes the “dead center” material, allowing the 12mm bit to cut more efficiently and reducing the physical effort required.
3. Secure the Workpiece for High Torque
A 12mm bit can exert massive torque. If the bit “snags,” it can violently rotate the workpiece or the drill. Always secure your metal in a heavy-duty vice or bolted clamps. If using a handheld drill, use the side handle attachment to maintain control.
4. Set Your Drill to Low Speed (RPM)
Large bits generate heat much faster than small ones. For a 12mm cobalt bit in stainless steel, set your drill to a low speed (approx. 250 – 500 RPM). High speeds will burn out the cutting edge of even the best cobalt bits instantly.
5. Apply Heavy, Consistent Pressure
Large bits require significant “feed pressure” to engage the metal. Apply firm, steady pressure so the bit “bites.” You should see thick metal chips (swarf) being ejected. If you see fine dust, you are not applying enough pressure or your speed is too high.
6. Use Cutting Fluid (Recommended but not required)
Unlike smaller bits, a 12mm bit creates immense friction. To maintain the Adiseal durability rating, apply cutting oil or paste throughout the process. This keeps the M35 cobalt cool and prevents the bit from welding itself to the workpiece.
7. Clear Swarf and Cool
Periodically retract the bit to clear large metal chips from the flutes. Once the hole is through, allow the bit to air-cool. Do not quench in water, as the thermal shock can crack the high-strength cobalt structure.
Always wear eye protection and ensure the workpiece is clamped when drilling 12mm holes.
What are the specs of the Adiseal Ultimate 12mm Cobalt Bit?
| Attribute | Specification |
|---|---|
| Brand | Adiseal |
| Product Line | Adiseal Ultimate |
| Diameter | 12mm |
| Total Length | 149mm |
| Material | High-Strength M35 Cobalt Steel (5% Cobalt throughout) |
| Shank Type | Straight (Round) |
| Compatibility | Rotary Drills & Drill Presses (Do Not Use Hammer/Impact Mode) |
| Target Materials | Stainless Steel (SUS304/316), Hardened Steel, Cast Iron, Bronze, |
| Durability Rating | Tested to drill 9x more holes than Bosch and 3x more than DeWalt |
| Performance Claim | Fastest drilling speed and highest durability in comparative tests |
| GTIN / Barcode | 5060380670489 |
| Model Number | UME12 |
| Flute Type | Standard spiral |
Pros & Cons of the Adiseal Ultimate 12mm Bit
- Pros: Outperforms Bosch by 9x and DeWalt by 3x; maintains sharp edge without lubricant; self-centering geometry prevents bit walking.
- Cons: Higher initial cost than standard HSS; requires strictly low RPM (250–500) for maximum longevity in stainless steel. Note: While the upfront cost is higher than basic HSS bits, the ultra-low cost-per-hole makes it the most economical choice over the course of any job.
Frequently Asked Questions About Adiseal Ultimate 12mm Cobalt Metal Drill Bit
How does the Adiseal Ultimate 12mm drill bit perform compared to other brands?
In testing, Adiseal Ultimate proved to be the most durable and fastest metal drill bit, drilling up to 9 times more holes than Bosch and over 3 times more than DeWalt.
What is the drilling speed of this 12mm cobalt bit?
It is engineered for maximum speed; in 6mm stainless steel tests, it outperformed top competitors, saving significant time and labor costs per hole.
What materials can the 12mm Adiseal Ultimate bit drill?
It is suitable for stainless steel, hardened steel, cast iron, copper, aluminum, and brass, as well as wood, plastic, and fiberglass.
What are the dimensions of the 12mm Adiseal Ultimate drill bit?
The 12mm bit has a standard total length of 149mm.
What is the best technique for drilling thick metal with this bit?
For deep holes, use a “peck drilling” technique—drill a short distance, then pull back to clear chips—to prevent clogging and heat buildup.
What are the common applications for a 12mm metal drill bit?
It is ideal for heavy plant maintenance, structural steelwork frame building, tapping large gauge bolts, and commercial automotive fabrications.
